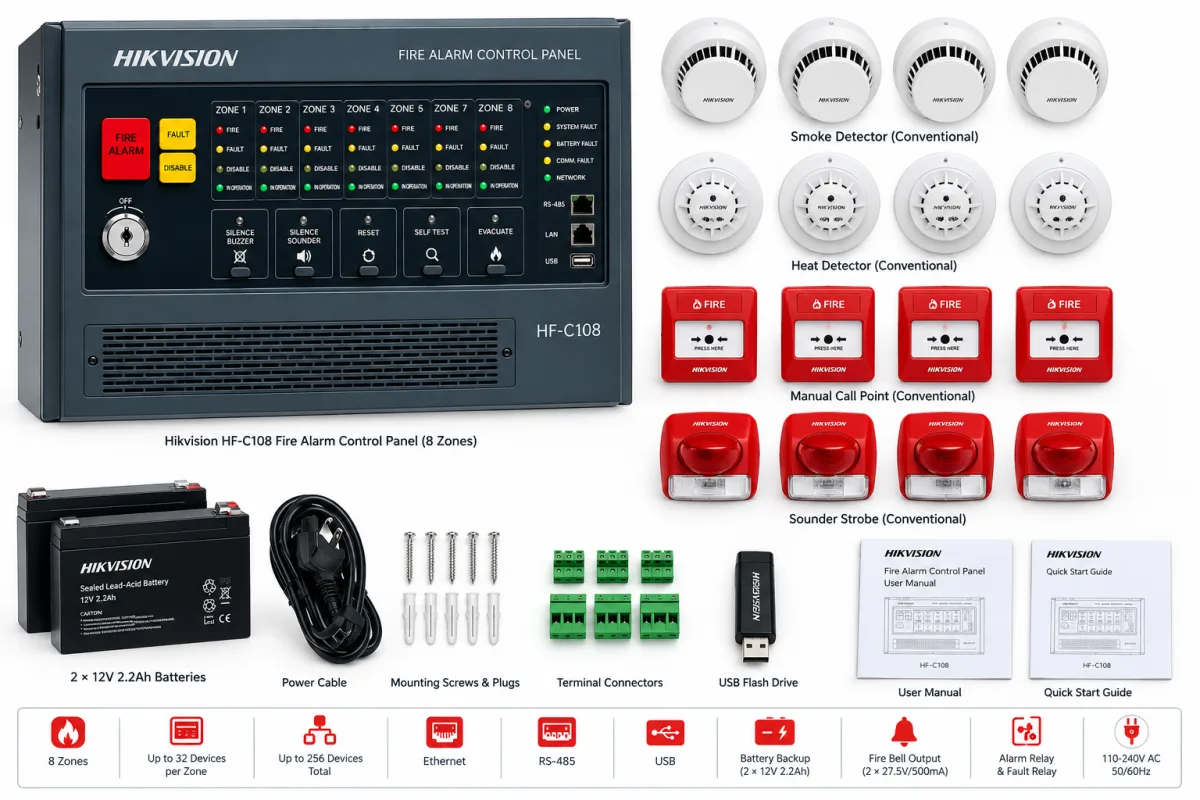

HIKVISION HF-C108 8-Zone Conventional Fire Alarm Control Panel

HIKVISION HF-C108 is an 8-zone conventional fire alarm control panel supporting up to 32 conventional devices per zone and up to 256 devices in total, with Ethernet, RS-485, alarm outputs, and battery backup.

The HIKVISION HF-C108 is a conventional fire alarm control panel designed to divide a building into 8 independent zones for monitoring fire detection and alarm devices. Each zone supports up to 32 conventional devices, providing a total capacity of up to 256 devices. The system can support conventional smoke detectors, heat detectors, manual call points, and other compatible fire alarm devices according to the project design and system requirements. The panel provides clear fire, fault, and disablement indications, together with local silence, reset, and self-test functions. The HF-C108 provides multiple interfaces for fire protection system integration, including Ethernet, RS-485, USB, four auxiliary power interfaces, a 24V output, two fire bell outputs, a fire alarm relay output, and a fault relay output. The panel operates from a 110–240V AC, 50–60Hz main power supply and supports backup power using two 12V 2.2Ah sealed lead-acid batteries to help maintain system operation during a mains power failure. The HF-C108 features a slim metal cabinet with wall-mounting and built-in installation options, making it suitable for buildings and facilities requiring a multi-zone conventional fire alarm system.
